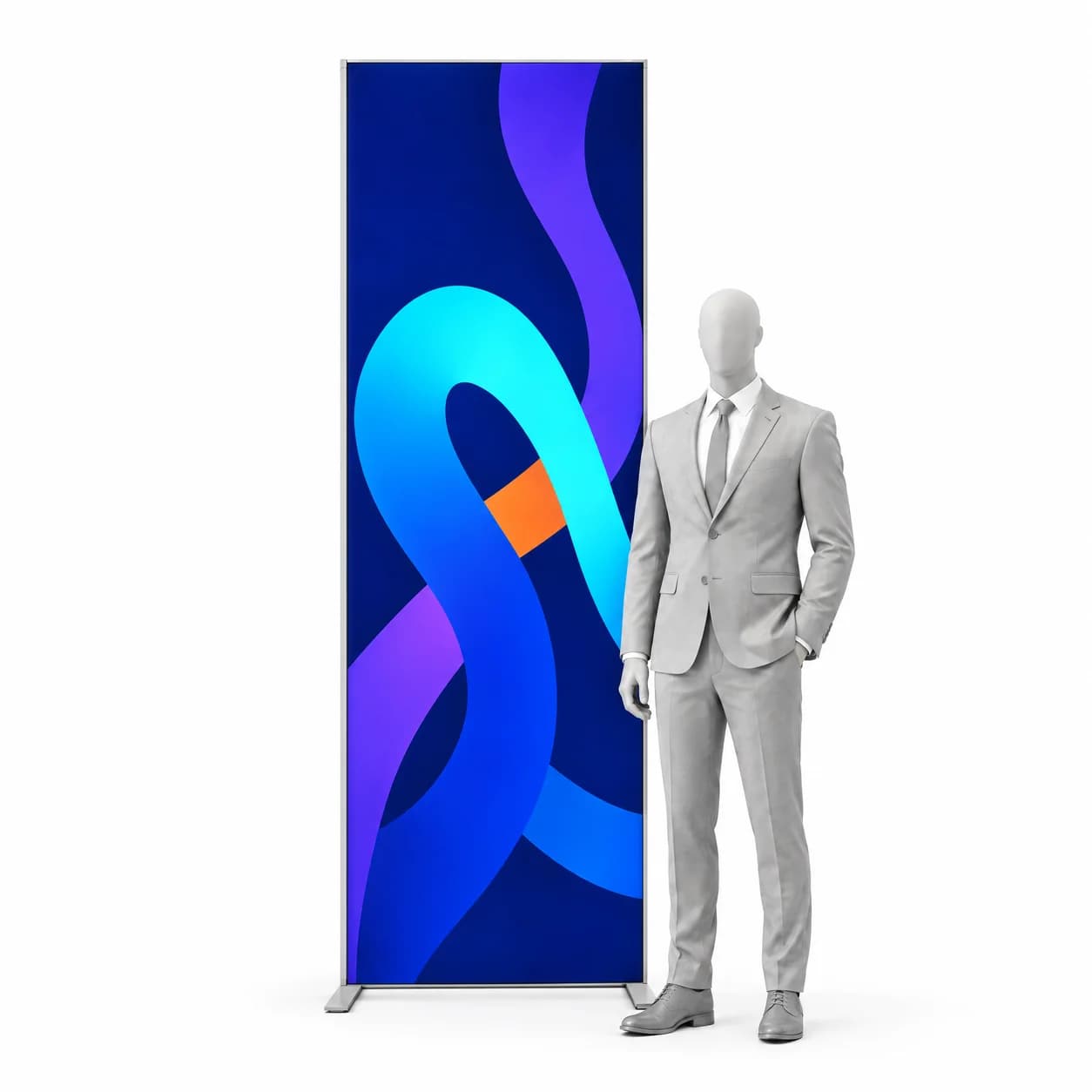

LED Backlight Illuminated Wall 100 × 250 cm with Print
LED backlit fabric wall 100 × 250 cm: the narrowest format in the series, a backlit pylon one metre wide and two and a half metres tall. The LED curtain with 160 LEDs lights the graphic evenly, and the back lets no light through.
from €303.90 excl. VAT
The price depends on the selected variant. You can check the set contents, printing and lead time in the configurator below.
Loading configuration options…
Backlit wall 100 × 250 cm with print included
The aluminium frame with a full-surface LED curtain lights the graphic evenly from edge to edge. The back lets no light through, so the colours on the front are bright and saturated. The SEG graphic with silicone edge slots into the profile groove, and the whole kit travels in a wheeled case.
- 160LEDs in the curtain
- 6.5 cmaluminium frame profile
- includedsingle-sided fabric print
- 5 daysworking days from design approval
Preview on the 3D model with backlight
The whole graphic glows, not just the edges
The LED curtain behind the fabric gives even light across the whole surface. The difference shows from the far end of the hall.
- Even backlighting
Full-surface LED curtain, 160 LEDs per metre of width, no brighter bands.
- Closed back
The back of the curtain lets no light through, so all the light goes into the graphic.
- Tool-free assembly
Profiles joined by their markings, graphic pressed into the groove by its silicone edge.
- Dye-sublimation print
Full colour on backlit fabric. Further graphics can be ordered for the same frame.
- B1 standard
LED curtain tested for flame retardancy to the B1 standard.

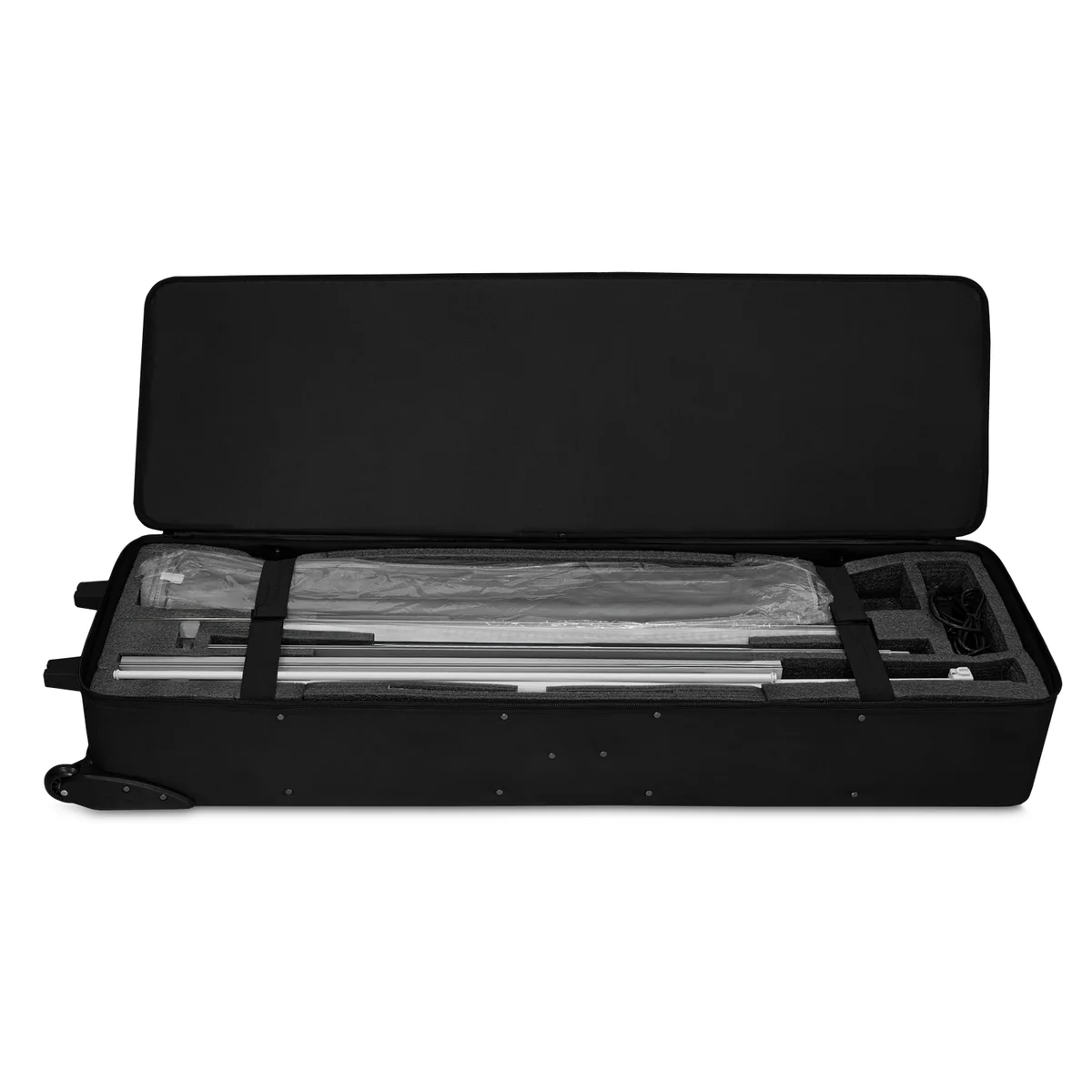

- Wheeled case
Frame, curtain and power supplies travel in a case; two cases from 400 cm.
100 × 250 cm, 6.5 cm profile
The anodised aluminium frame assembles without tools, and the SEG graphic slots into the profile groove. Weights and LED counts for every size are in the description.
- Wall size
- 100 × 250 cm
- Frame profile
- 6.5 cm
- Graphic area
- 2.5 m²
- Feet
- 2 × 40 cm
- Frame
- anodised aluminium, 6.5 cm profile
- LEDs
- 160 pcs, approx. 96 W
- Light colour
- cool white 7000–8000 K
- Power
- 1 power supply 100–240 V
- Fixing
- SEG, 3 × 12 mm groove
- dye sublimation, single-sided, included
- Kit weight
- 17.75 kg
- Transport
- 1 wheeled case

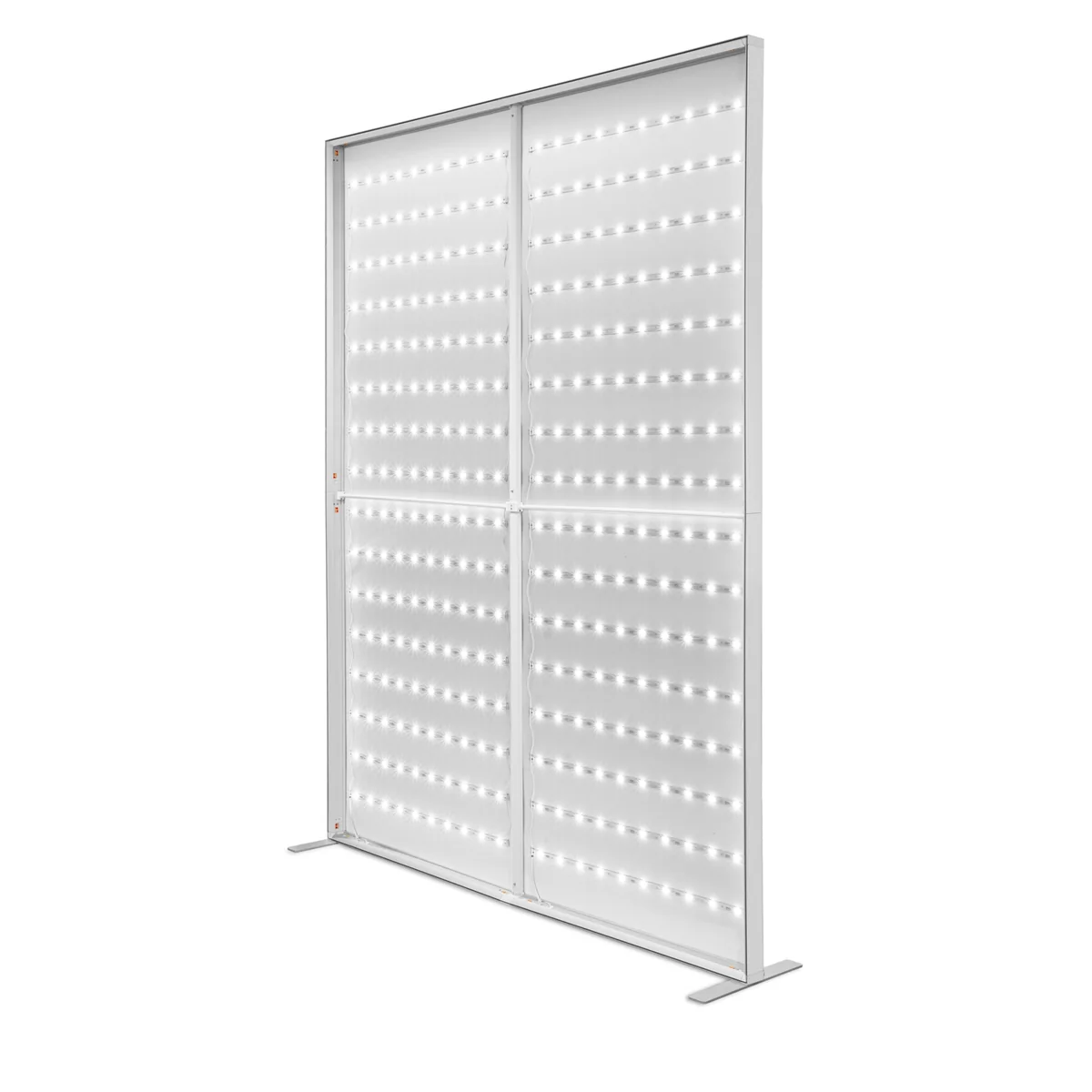

LED curtainLED strips across the entire frame

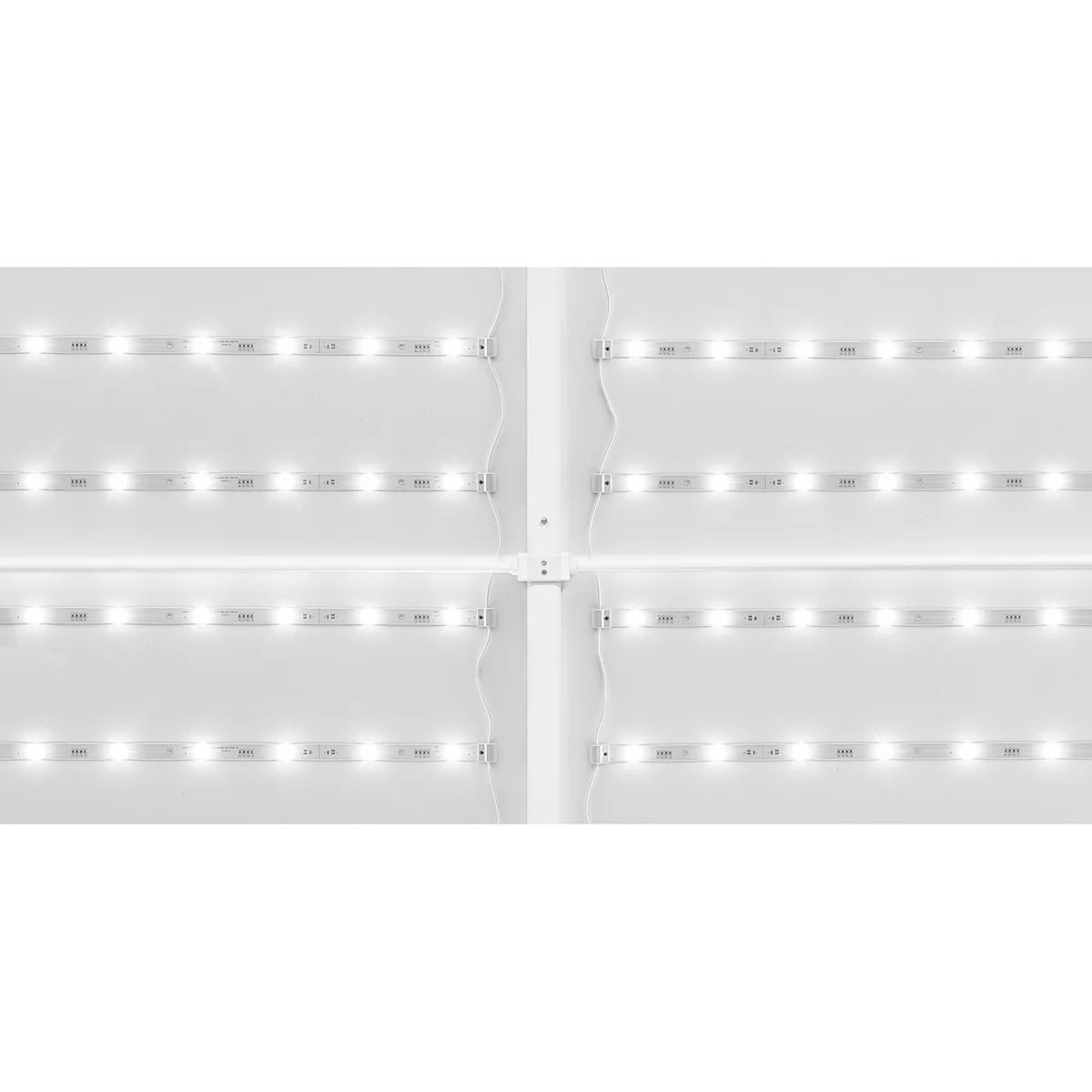

LED strips160 LEDs per metre of width

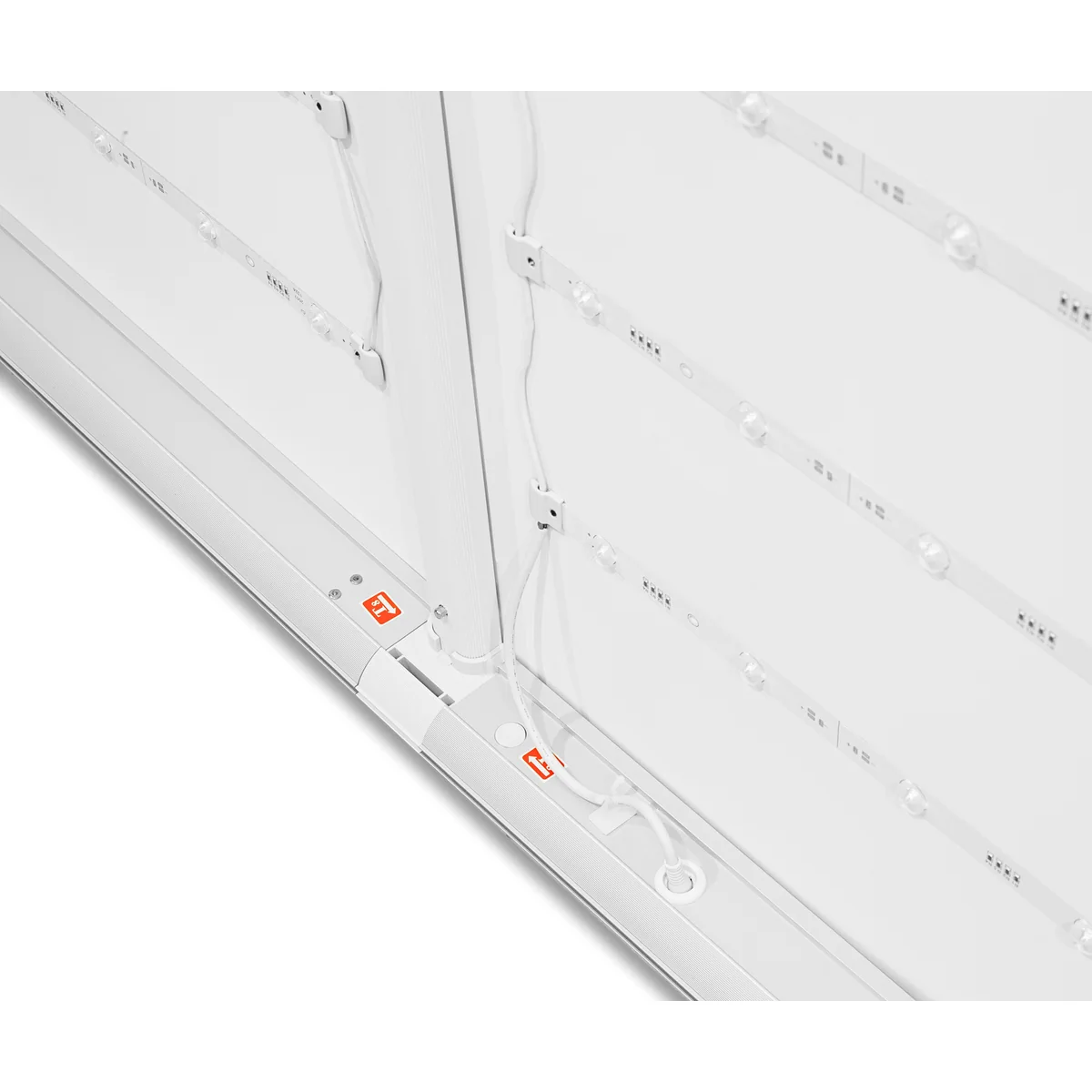

Frame cornerlight reaches right to the edge

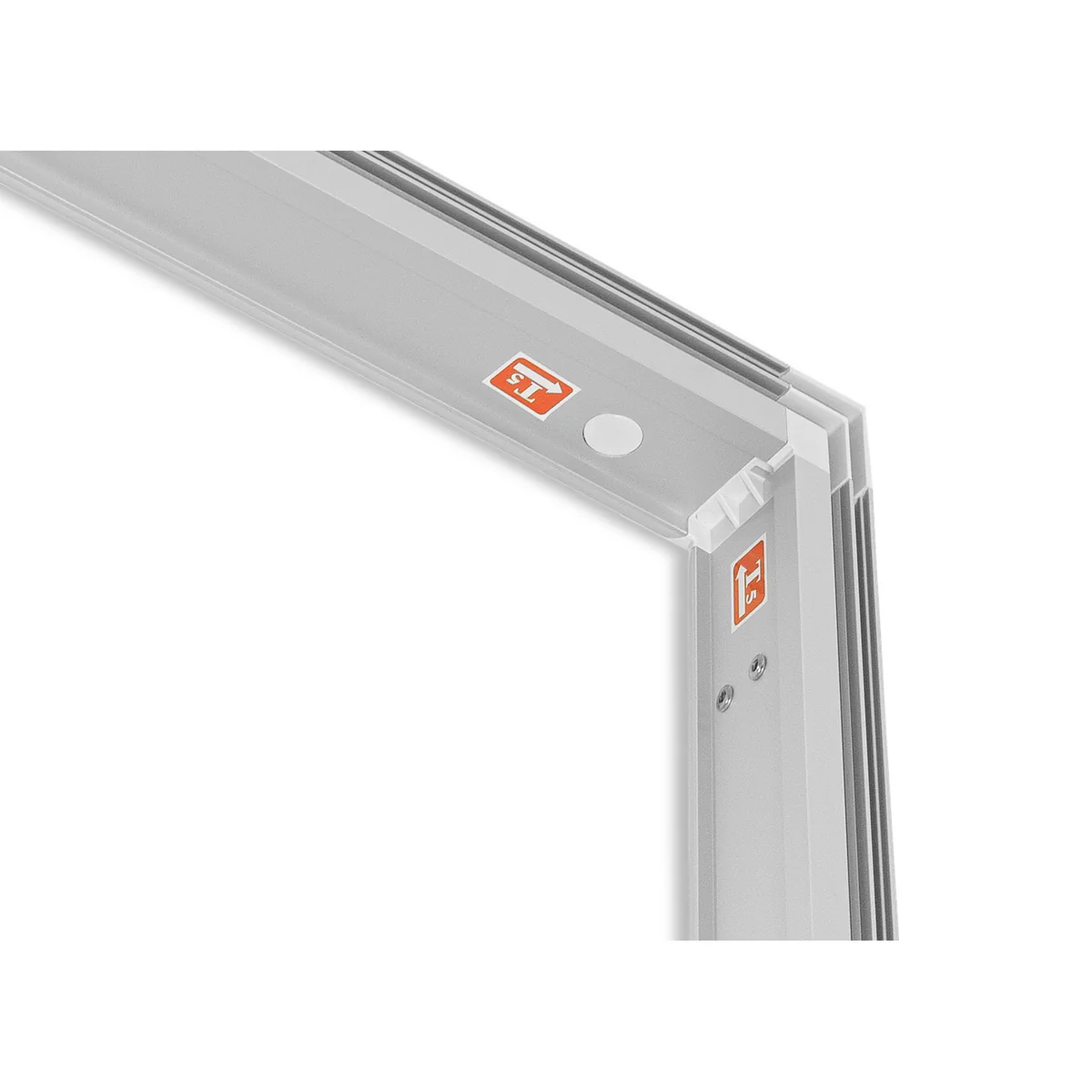

6.5 cm profile3 × 12 mm groove for the silicone edge

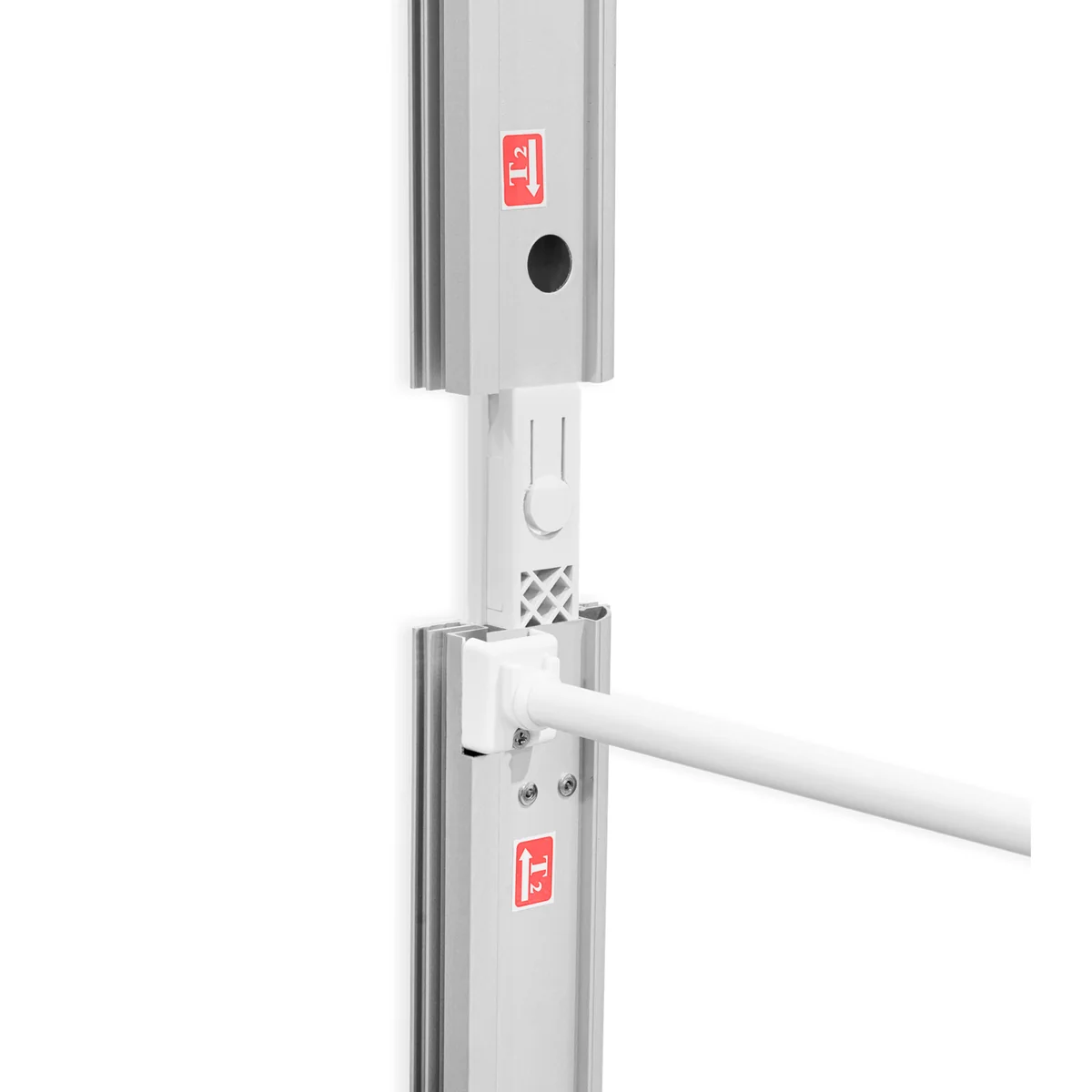

Marked connectorsassembly by numbers, no tools

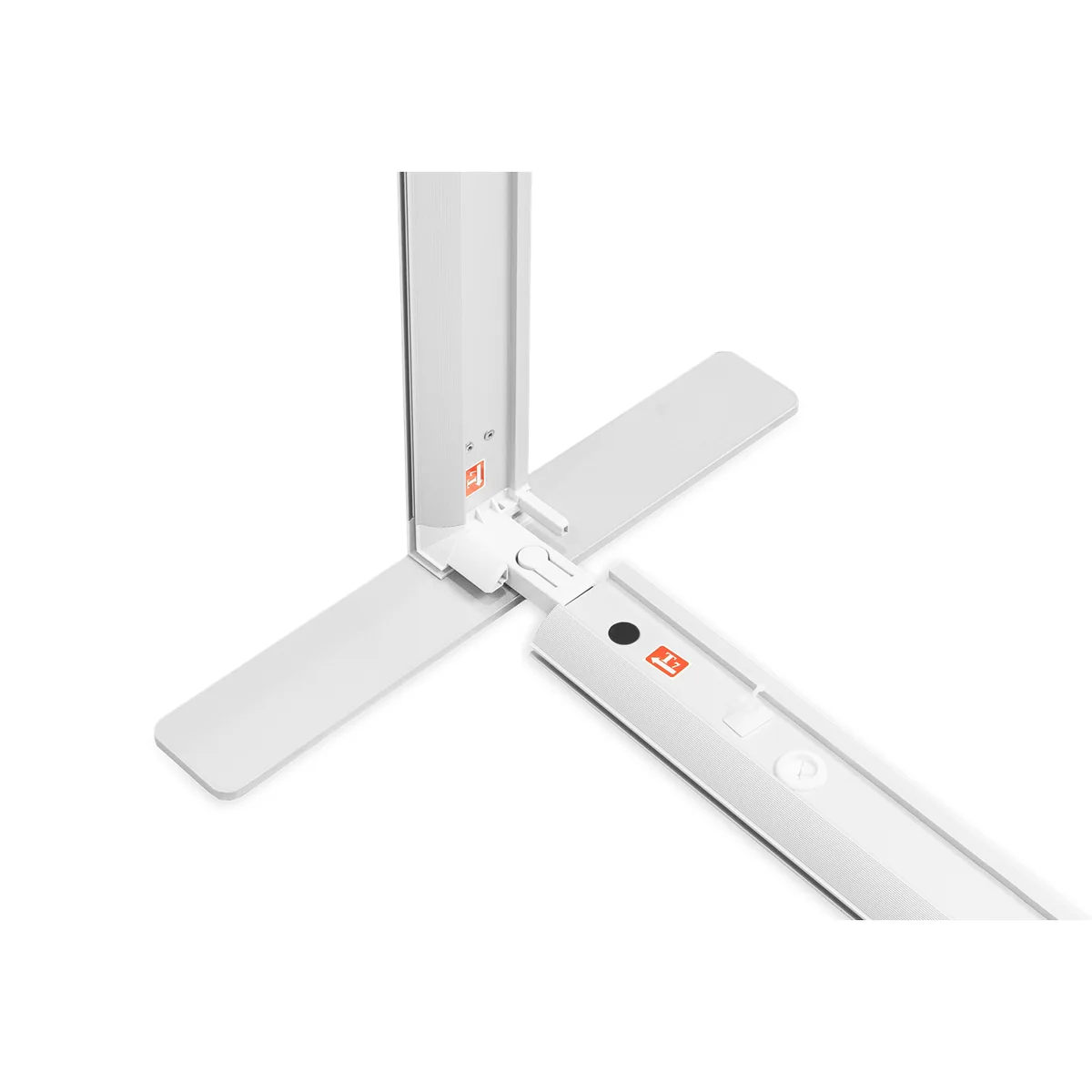

Feet 40 × 6 cmflat, stable, aluminium
Frame, light and case
Everything the wall needs to glow straight out of the case. Accessories for stand builds are selected in the configurator.
- Frame with LED curtain100 × 250 cm, 160 LEDs
- Power supplies1 power supply, 100–240 V
- Feet2 feet
- Graphicdye sublimation with SEG silicone edge
- Casea wheeled case 145 × 43 × 11.5 cm
From design to dispatch
Before printing we send a proof for approval. No design of your own? Select graphic design and we will prepare it from your materials.
- Graphic
Upload the design in the 3D Studio and check it on the model with the backlight on, or download the 1:10 PDF template.
- Proof
Before printing you receive a proof for approval.
- Printing and sewing
Dye sublimation on backlit fabric, finished with a silicone edge for the profile groove.
- Shipping
Production in 5 working days from approval; the kit ships by courier in a wheeled case.
Where it works best

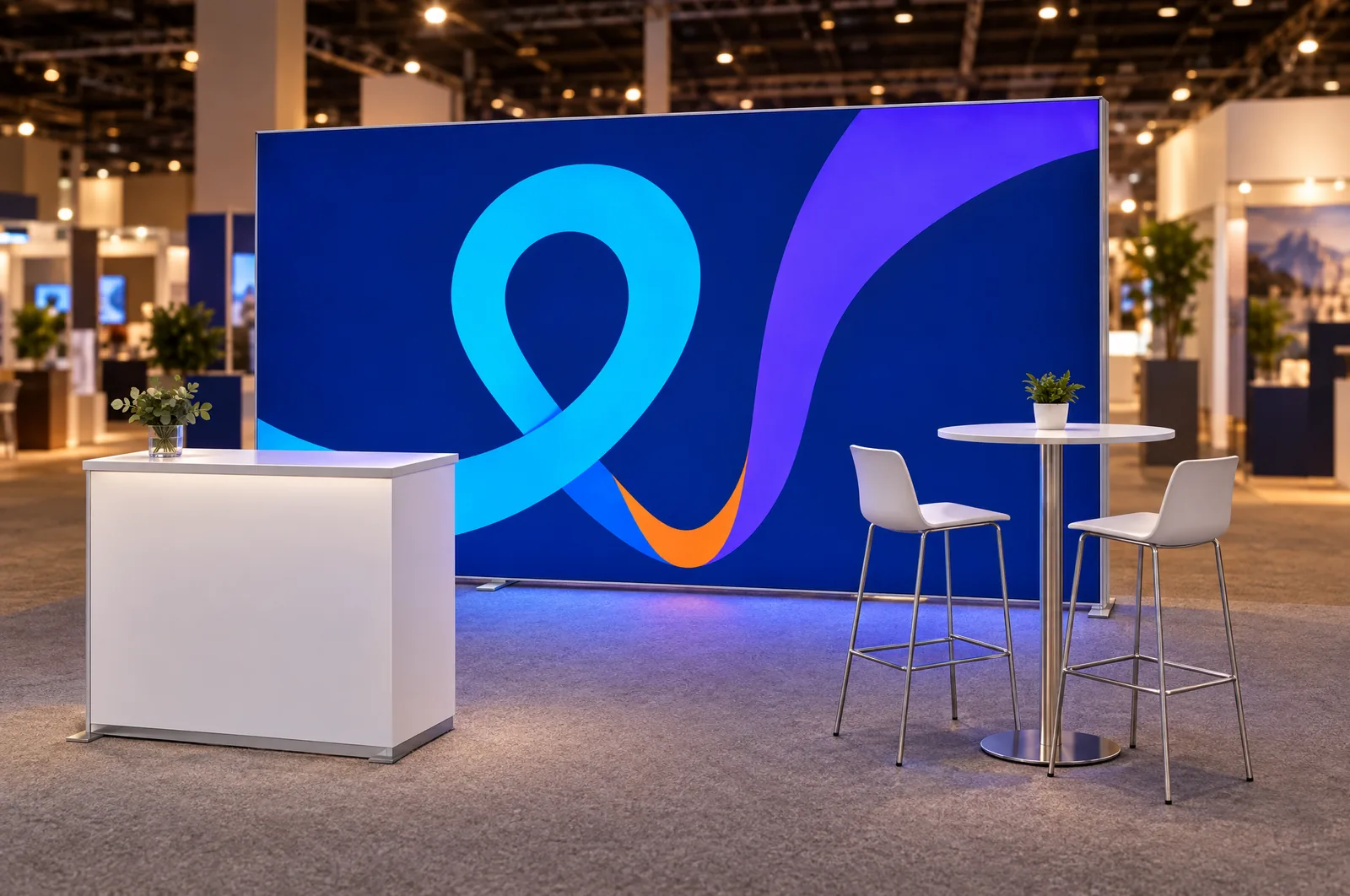

- Exhibition stands
- Photo walls and PR
- Showrooms

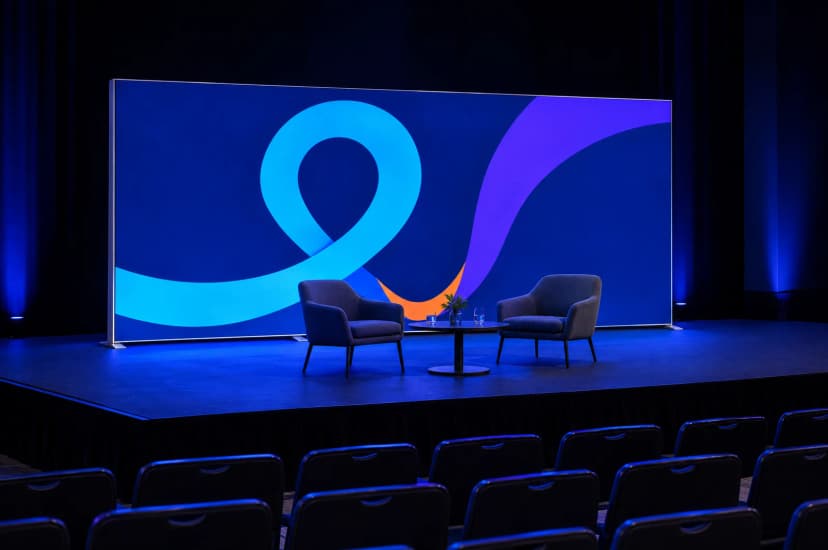

- Conferences and stages
- Shop windows and receptions
Business orders
- VAT invoice
- Print included in the price
- Bank transfer or online payment
- 3D preview with backlight
A graphic that glows from within
The LED Backlight wall is an aluminium fabric frame with an LED curtain: light strips spread evenly across the entire surface behind the graphic. We dye-sublimation print the graphic on backlit fabric, sew a SEG silicone edge around it and press it into the profile groove (SEG system). The back of the curtain is blockout, so all the light goes forward and the colours stay bright and saturated, even in daylight and under strong hall lighting.
The LED Backlight wall 100 × 250 cm is the narrowest format in the series, a backlit pylon one metre wide and two and a half metres tall. It works wherever visibility matters: entrances, receptions, shop windows, narrow stand walls and as a companion to larger walls.
Dimensions, lighting and weight
| Size | LEDs (power) | Power supplies | Feet | Frame weight | Kit with case | Transport |
|---|---|---|---|---|---|---|
| 100 × 250 cm | 160 (96 W) | 1 power supply | 2 | 9.95 kg | 17.75 kg | 1 case |
| 200 × 250 cm | 320 (192 W) | 2 power supplies | 2 | 15 kg | 25.3 kg | 1 case |
| 300 × 250 cm | 480 (288 W) | 3 power supplies | 2 | 20 kg | 32.6 kg | 1 case |
| 400 × 250 cm | 640 (384 W) | 4 power supplies | 4 | 25.1 kg | 45.7 kg | 2 cases |
| 500 × 250 cm | 800 (480 W) | 5 power supplies | 4 | 30.2 kg | 53.4 kg | 2 cases |
| 600 × 250 cm | 960 (576 W) | 6 power supplies | 4 | 35.3 kg | 61.1 kg | 2 cases |
Data from the manufacturer's technical sheets: 160 LEDs per metre of width, each 0.6 W and 60–70 lm, cool white light 7000–8000 K. Height is always 250 cm, profile 6.5 cm.
Construction
- Frame in anodised aluminium, 6.5 cm profile with 2 mm walls, ABS plastic connectors.
- LED curtain across the whole frame lights the graphic evenly, with no brighter bands at the edges.
- Closed back: the curtain lets no light through at the back. One side lights up, the front.
- SEG graphic with a silicone edge slots into the 3 × 12 mm groove; changing the graphic takes a few minutes, and the frame lasts for years.
- Feet 40 × 6 cm; walls from 400 cm have four: two outer and two central.
Tool-free assembly
- Join the frame profiles following the markings on the connectors and screw on the feet.
- Clip in the LED curtain and plug the power supplies into a 100–240 V socket.
- Press the silicone edge of the graphic into the profile groove, starting at the corners.
Accessories for stand builds
- Half feet (2 pcs), €17.50 excl. VAT: the wall stands right against a wall or in a corner.

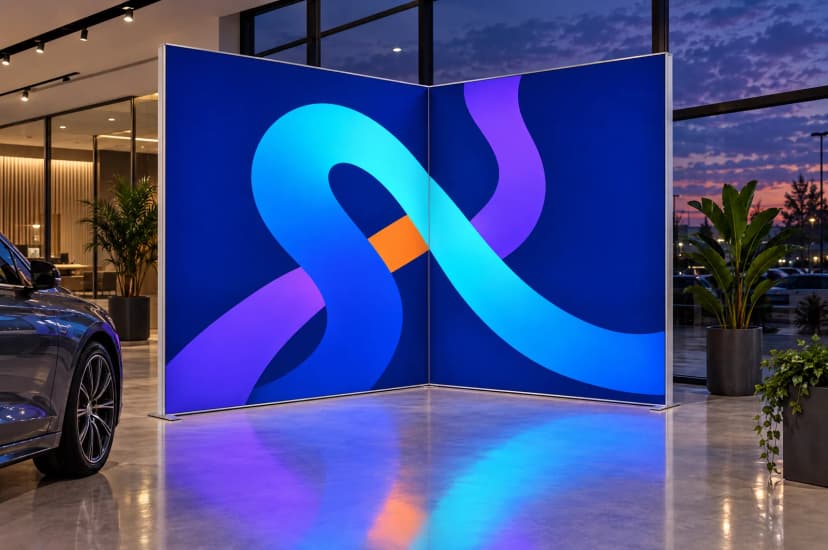

- 90° connector (2 pcs), €12.80 excl. VAT: joins two walls into a stand corner.
- Roof connectors (4 pcs), €19.10 excl. VAT: for stand builds with a roof.
What's included
100 × 250 cm frame with LED curtain (160 LEDs), 1 power supply 100–240 V, 2 feet, printed graphic and a wheeled case 145 × 43 × 11.5 cm.
Design and production
- Upload your graphic in the 3D Studio and see it on the model straight away, with the backlight on or off. You can also download a 1:10 scale PDF template.
- No design yet? Select graphic design (€82.50 excl. VAT) and we will prepare it from your materials.
- Before printing we send a proof for approval. Production takes 5 working days from approval, and the kit ships by courier in a wheeled case.
Good to know
before you order.
Is the print included in the price?
Yes. The price covers the frame with LED curtain, power supplies, feet, case and the 100 × 250 cm graphic with single-sided print. You only pay extra for graphic design, if you order it, and for accessories.
How bright is the backlight?
The curtain has 160 LEDs at 0.6 W each (about 96 W in total) and delivers about 9,600–11,200 lm of cool white 7000–8000 K light, spread evenly across the whole graphic.
Does the wall light up on both sides?
No. The front lights up, and the back of the curtain is blockout, which makes the front graphic brighter. From behind you see a uniform dark surface.
How do I prepare the design?
Upload a JPG, PNG or WebP in the 3D Studio and set the crop on the model, or download the 1:10 scale PDF template, fill it in and upload it. Before printing we send you a proof for approval.
How much does the wall weigh and how is it transported?
The frame alone weighs 9.95 kg, and the complete kit with case 17.75 kg. Transport: a wheeled case 145 × 43 × 11.5 cm.
Can I connect several walls?
Yes. The 90° connector (€12.80 excl. VAT for 2 pcs) joins two walls into a corner, the roof connectors (€19.10 excl. VAT for 4 pcs) let you build a stand with a roof, and the half feet (€17.50 excl. VAT for 2 pcs) let the wall stand right against a wall.
Can I replace the graphic later?
Yes. The graphic comes out of the profile groove by its silicone edge in a few minutes. A new graphic in the same size can be ordered separately and fitted to the same frame.
How long does production take?
Production takes 5 working days from design approval. We ship the kit by courier in a wheeled case, or in two cases from 400 cm.
